IOIO, télécommande SMS
J'ai reçu ma carte IOIO...
Descriptif
ici
Première mise en marche en suivant ce tuto: https://www.sparkfun.com/tutorials/280
échec.....

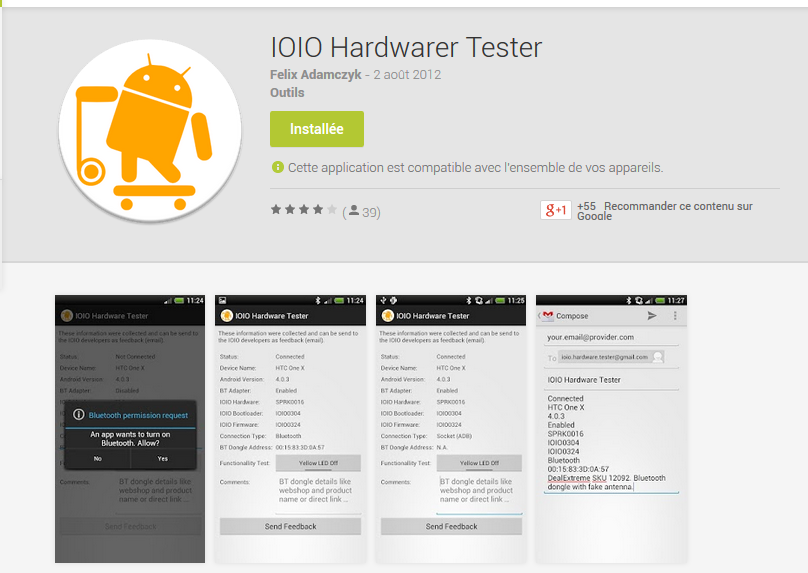

En fouillant un peu, je trouve et installe cette appli:
https://play.google.com/store/apps/details?id=ioio.example.ioiohardwaretester
Non seulement cette appli fonctionne, cad commande la led de la carte
mais elle m'informe que le firmware eest 330 alors que j'utilisais la
dernière bibliothèque conseillée 504 (d'ou l'échec)
Miracle: en utilisant la bonne bibliothèque 0330 tout marche comme dans
les livres....
On verra la mise à jour 504 plus tard, cela se fait sous dos et la
carte n'est pas reconnue par windows 8...
Je me suis alors lancée pour une télécommande par SMS, la voila
Pas de gros soucis, j'ai juste utilisé les sorties 1 à 4 connectées sur
une carte 4 relais
Pour le soft: j'ai enrichi mon SMS launcher de cette procédure:
public void TraiteIOIO(Context c, String body) {
Toast.makeText(c, "Launcher say IOIO: " + body,
Toast.LENGTH_SHORT).show();
Intent i;
// lance
l'activity et transmet la commande
try {
i =
c.getPackageManager().getLaunchIntentForPackage("ioio.examples.tlc4r");
if (i == null)
throw new
PackageManager.NameNotFoundException();
i.addCategory(Intent.CATEGORY_LAUNCHER);
i.putExtra("ioio", body);
c.startActivity(i);
} catch
(PackageManager.NameNotFoundException e) {
// affiche que l'appli n'es pas présente
sur le tel
Toast.makeText(c, "Appli non
trouvée...", Toast.LENGTH_LONG).show();
}
}
si ce Launcher intercepte ioio dans un sms, il lance l'appli tlc4r avec
le sms en intent
L'appli tlc4r est IOIOHello modifiée
public class MainActivity extends IOIOActivity implements
OnClickListener {
int duree = 10;
Timer t;
TimerTask task;
public String cmde="rien",r="-";
TextView tv1;
Intent intent;
@Override
public void onCreate(Bundle
savedInstanceState) {
super.onCreate(savedInstanceState);
cmde="ioio120";
setContentView(R.layout.main);
tv1 =
(TextView) findViewById(R.id.textView1);
tv1.setTextSize(40);
findViewById(R.id.button1).setOnClickListener(this);;
}
public void getCommande() {
intent =
getIntent();
if
(intent != null) cmde = intent.getStringExtra("ioio").toString();
Toast.makeText(getApplicationContext(), "reçu=" +
cmde, Toast.LENGTH_LONG).show();
}
@Override
public void onResume() {
super.onResume();
try {
getCommande();
} catch
(Exception e) { }
r="-";
duree=0;
if
(cmde.contains("ioio")) {
r=cmde.substring(4,5);//le relai
String
d=cmde.substring(5,cmde.length());//la
durée
duree=Integer.parseInt(d);
}
tv1.setText(cmde+"\nrelai n° "+r+" durée:"+duree);
if
(duree>0) startTimer();
}
public void startTimer() {
t = new
Timer();
task =
new TimerTask() {
@Override
public void run() {
runOnUiThread(new Runnable() {
@Override
public void run() {
tv1.setText(cmde+"\nrelai n° "+r+" durée:"+duree);
if (duree
> 0)
duree -= 1;
else {
tv1.setText("Fini");
t.cancel();
t.purge();
cmde = "rien";
quitter();
}
}
});
}
};
t.scheduleAtFixedRate(task, 0, 1000);
}
......
la syntaxe du sms est ioio+RelaiSurUnChiffre+duréeEnSecondes
par exemple ioio1900, relai 1mis en marche pendant 900 secondes

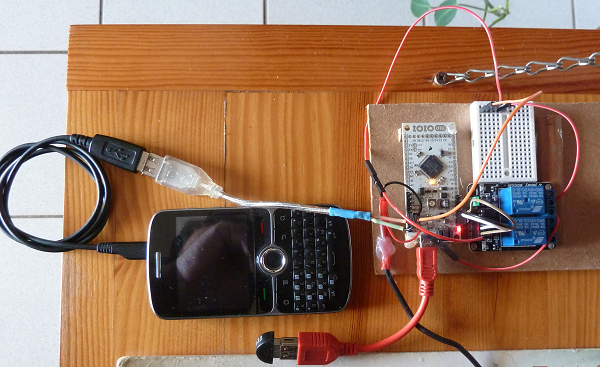

Version BT...
L'inconvénient de cette version est que le téléphone est toujours en
charge...
Pour que l'accu soit déchargé puis chargé réguliérement je suis passé à
une version ou la communication avec ioio se fait en Bluetooth
Deux relais sont utilisés, un pour la télécommande, l'autre pour la
charge du téléphone (câble USB blanc)
Il faut suivre en permanence l'état de la charge et agir si elle est
<10 % ou >98%
package ioio.examples.hello_service;
import android.app.Notification;
import android.app.NotificationManager;
import android.app.PendingIntent;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.os.BatteryManager;
import android.os.Handler;
import android.os.IBinder;
import android.widget.Toast;
import ioio.lib.api.DigitalOutput;
import ioio.lib.api.IOIO;
import ioio.lib.api.exception.ConnectionLostException;
import ioio.lib.util.BaseIOIOLooper;
import ioio.lib.util.IOIOLooper;
import ioio.lib.util.android.IOIOService;
public class HelloIOIOService extends IOIOService {
boolean charge = false;
int niveau = 50, level, duree = 20;
Context c;
Handler mHandler;
BatteryReceiver EcouteurBatterie;
float batteryLevel;
Intent batteryIntent;
String cmde = "rien";
@Override
protected IOIOLooper createIOIOLooper() {
return
new BaseIOIOLooper() {
private DigitalOutput led_, led1, led2;
@Override
protected void setup() throws
ConnectionLostException, InterruptedException {
led_ =
ioio_.openDigitalOutput(IOIO.LED_PIN);
led1 =
ioio_.openDigitalOutput(1);
led2 =
ioio_.openDigitalOutput(2);
}
public void TraiteCharge() throws
ConnectionLostException{
if (level
> 98) charge = false;
if (level
< 10) charge = true;
led1.write(!charge);
}
public void TraiteRelai() throws
ConnectionLostException {
led2.write(!(duree>0));
if (duree
> 0) duree--;
else
try {
FileUtil
f = new FileUtil("ioio");
if
(f.SDCardFichierExiste()) {
cmde = f.loadTextFromSdcard();
if (cmde.contains("rien")) duree=-1;
else
{String
sduree=cmde.substring(5, cmde.length());
try {
duree = Integer.parseInt(sduree);
mHandler.post(new Runnable() {
public
void run() {
Toast.makeText(HelloIOIOService.this,"Durée reçue:"+duree,
Toast.LENGTH_LONG).show();
}
});
}
catch(NumberFormatException nfe) {nfe.printStackTrace();}
f.saveTextInSdcard("ioio rien");}
}
} catch (Exception e)
{ e.printStackTrace();}
}
@Override
public void loop() throws
ConnectionLostException, InterruptedException {
TraiteCharge();
TraiteRelai();
led_.write(false);
Thread.sleep(500);
led_.write(true);
Thread.sleep(500);
}
};
}
private class BatteryReceiver
extends BroadcastReceiver {
@Override
public void onReceive(Context arg0, Intent arg1) {
if
(arg1.getAction().equalsIgnoreCase(Intent.ACTION_BATTERY_LOW)
|| arg1.getAction().equalsIgnoreCase(
Intent.ACTION_BATTERY_CHANGED)
|| arg1.getAction().equalsIgnoreCase(
Intent.ACTION_BATTERY_OKAY)) {
level = arg1.getIntExtra("level", 0);
batteryLevel = getBatteryLevel(batteryIntent);
mHandler.post(new Runnable() {
public
void run() {
Toast.makeText(HelloIOIOService.this,"Niveau batterie : "+level//+"
"+batteryLevel
,Toast.LENGTH_LONG).show();
}
});
}
}}
@Override
public void onStart(Intent intent, int
startId) {
super.onStart(intent, startId);
c=this;
Toast.makeText(c, "IOIO SMS en route...", Toast.LENGTH_SHORT).show();
NotificationManager nm = (NotificationManager)
getSystemService(NOTIFICATION_SERVICE);
if
(intent != null && intent.getAction() != null
&& intent.getAction().equals("stop")) {
// User clicked the notification. Need
to stop the service.
nm.cancel(0);
stopSelf();
} else {
// Service starting. Create a
notification.
Notification notification = new
Notification(
R.drawable.ic_bat2, "IOIO service
running",
System.currentTimeMillis());
notification
.setLatestEventInfo(this, "IOIO
Service", "Click to stop",
PendingIntent.getService(this, 0, new
Intent(
"stop", null, this, this.getClass()),
0));
notification.flags |=
Notification.FLAG_ONGOING_EVENT;
nm.notify(0, notification);
}
}
public float getBatteryLevel(Intent
batteryIntent) {
int level = batteryIntent.getIntExtra(BatteryManager.EXTRA_LEVEL,
-1);
int scale = batteryIntent.getIntExtra(BatteryManager.EXTRA_SCALE,
-1);
if (level == -1 || scale == -1) {
return 50.0f;
}
return ((float) level / (float) scale) * 100.0f;
}
@Override
public IBinder onBind(Intent arg0) {
return
null;
}
@Override
public void onCreate() {
super.onCreate();
mHandler
= new Handler();
EcouteurBatterie = new BatteryReceiver();
IntentFilter mIntentFilter = new IntentFilter();
mIntentFilter.addAction(Intent.ACTION_BATTERY_LOW);
mIntentFilter.addAction(Intent.ACTION_BATTERY_CHANGED);
mIntentFilter.addAction(Intent.ACTION_BATTERY_OKAY);
batteryIntent = registerReceiver(EcouteurBatterie, mIntentFilter);
batteryLevel = getBatteryLevel(batteryIntent);
}
@Override
public void onDestroy(){
super.onDestroy();
unregisterReceiver(EcouteurBatterie);
}
}
